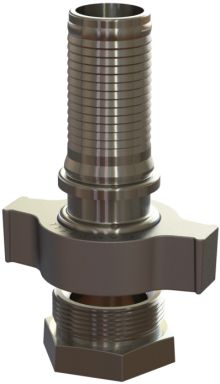

Female Set with Wing Nut
Female Set with Wing Nut
Description
    Recommended Use:
    • High-pressure steam and air
    Recommended Hose Attachments:
    • Interlocking Ferrules
    • Interlocking U-bolt clamps
    Features and Benefits:
    • Viton Seal Coupling pass 1000 hour MIL-H-29210 steam test.
    • Eliminates leaks with nut hand tightened
    • Viton seal (formulated by DuPont for high pressure steam and air applications) is protected inside machined stem groove and by swivel nut, extending working life.
    • Spud does not contain plastic seat, extending working life
    • Interchangeable with old-style domestic ground joint couplings.
    • Machined hose ends with smooth end detail to reduce potential failure due to abrasion - grips, seals, and protects hose.
    • Interlock groove locks ferrule into place for superior holding power


NAME
PART#
Hose Size
Material
Size
LIST PRICE
Female Set w/ wing nut
3"
3"
$411.07
Female Set w/ wing nut
4"
4"
$812.81
Female Set w/ wing nut
$355.19
Female Set w/ wing nut
2"
2"
$180.65
Female Set w/ wing nut
$147.88
Female Set w/ wing nut
$148.50
Female Set w/ wing nut
1"
1"
$80.54
Female Set w/ wing nut
$77.82
Female Set w/ wing nut
$70.40
Please Login To Order
PART#
QTY
PRICE
$411.07
$812.81
$355.19
$180.65
$147.88
$148.50
$80.54
$77.82
$70.40
