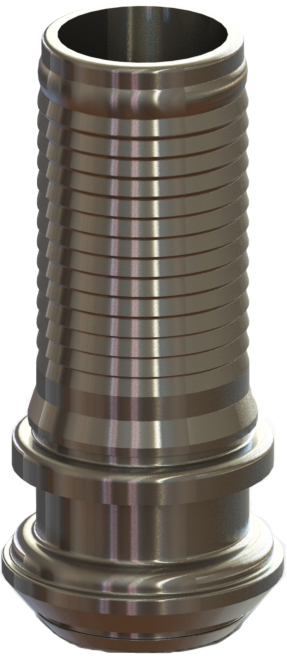

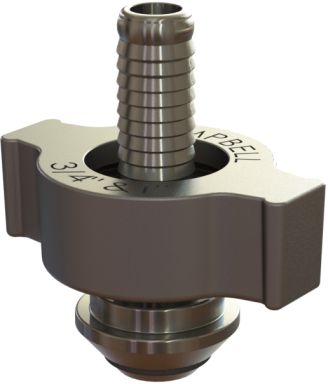

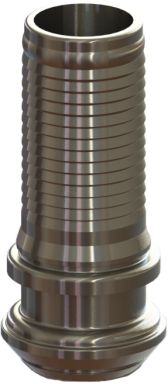

Viton® Seal Hose Stem

High-pressure steam and air

Interlocking Ferrules
Interlocking U-bolt clamps

Viton Seal Coupling pass 1000 hour MIL-H-29210 steam test.
Eliminates leaks with nut hand tightened
Viton seal (formulated by DuPont for high pressure steam and air applications) is protected inside machined stem groove and by swivel nut, extending working life.
Spud does not contain plastic seat, extending working life
Interchangeable with old-style domestic ground joint couplings.
Machined hose ends with smooth end detail to reduce potential failure due to abrasion - grips, seals, and protects hose.
Interlock groove locks ferrule into place for superior holding power

DISTRIBUTOR AUTHORIZATION
Safety is of paramount concern to everyone. Due to the volatile nature of compressed air and steam, and in accordance with our ISO 9001 quality system, we reserve the right to restrict sales of our Ground Joint Viton® Seal Couplings and U-Bolt Clamps to only those distributors authorized by Campbell Fittings.

Please contact our Customer Service department for more information.

Click a column header to sort table.

Name:	Part #:	Size:	Material:	List Price:	More Info:
Viton Seal Hose Stem	GJS-2	1/2"	Plated Steel	$16.99	Details
Viton Seal Hose Stem	GJS-3	3/4"	Plated Steel	$24.78	Details
Viton Seal Hose Stem	GJS-4	1"	Plated Steel	$25.61	Details
Viton Seal Hose Stem	GJS-5	1-1/4"	Ductile Iron	$43.55	Details
Viton Seal Hose Stem	GJS-6	1-1/2"	Ductile Iron	$40.37	Details
Viton Seal Hose Stem	GJS-8	2"	Ductile Iron	$55.30	Details
Viton Seal Hose Stem	GJS-10	2-1/2"	Ductile Iron	$82.30	Details
Viton Seal Hose Stem	GJS-12	3"	Ductile Iron	$127.04	Details
Viton Seal Hose Stem	GJS-16	4"	Ductile Iron	$231.12	Details
Viton Seal Hose Stem	GJSS-2	1/2"	316 Stainless Steel	$139.32	Details
Viton Seal Hose Stem	GJSS-3	3/4"	316 Stainless Steel	$96.30	Details
Viton Seal Hose Stem	GJSS-4	1"	316 Stainless Steel	$128.49	Details
