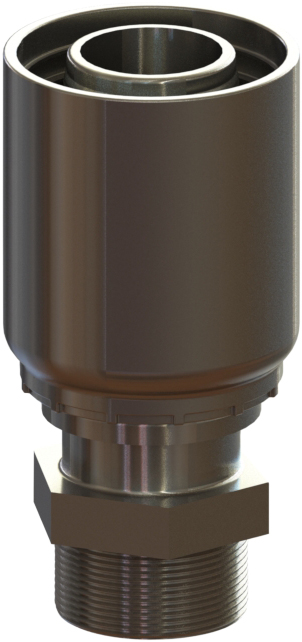

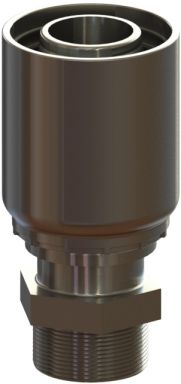

Interlocking Male Stem w/ staked on ferrule

High-pressure steam and air
For steam hose use.

Viton Seal Coupling pass 1000 hour MIL-H-29210 steam test.
Machined hose ends with smooth end detail to reduce potential failure due to abrasion - grips, seals, and protects hose.
Interlock groove locks ferrule into place for superior holding power
Crimped assemblies are low profile and eliminate sharp edges from bolts.
Machines from carbon steel, cast ductile iron (meets ASTM A395 specification), and 316 stainless steel.

DISTRIBUTOR AUTHORIZATION
Safety is of paramount concern to everyone. Due to the volatile nature of compressed air and steam, and in accordance with our ISO 9001 quality system, we reserve the right to restrict sales of our Ground Joint Viton® Seal Couplings and U-Bolt Clamps to only those distributors authorized by Campbell Fittings.

Please contact our Customer Service department for more information.

Click a column header to sort table.

Name:	Part #:	Material:	List Price:	More Info:
Interlocking Male Stem w/ staked on ferrule	IMS-2V	1/2"	Plated Steel	$42.18	Details
Interlocking Male Stem w/ staked on ferrule	IMS-3V	3/4"	Plated Steel	$39.95	Details
Interlocking Male Stem w/ staked on ferrule	IMS-4CV	1"	Plated Steel	$57.85	Details
Interlocking Male Stem w/ staked on ferrule	IMS-6V	1-1/2"	Ductile Iron	P.O.R.	Request Price
Interlocking Male Stem w/ staked on ferrule	IMS-8V	2"	Ductile Iron	$243.67	Details
Interlocking Male Stem w/ staked on ferrule	IMSS-3V	3/4"	316 Stainless Steel	P.O.R.	Request Price
Interlocking Male Stem w/ staked on ferrule	IMSS-4CV	1"	316 Stainless Steel	P.O.R.	Request Price
Interlocking Male Stem w/ staked on ferrule	IMSS-4V	1"	316 Stainless Steel	P.O.R.	Request Price
