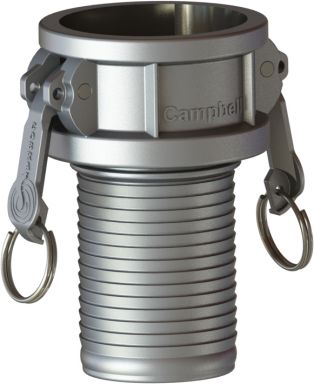

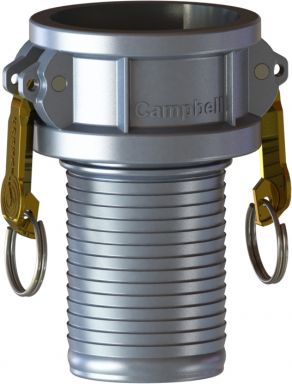

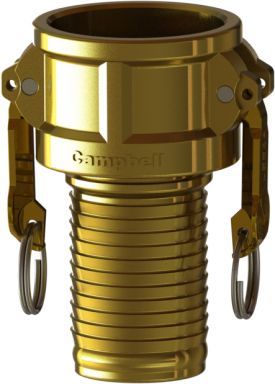

    Campbell COBRA Part C (with ferrule interlock)
    Campbell COBRA Part C (with ferrule interlock)
    Description
      Recommended Use:
      • Multi-purpose liquid, chemical, bulk handling
      Recommended Hose Attachments:
      • Interlocking ferrules
      Features and Benefits:
      • Designed for use with campbell Interlocking Ferrules.
      • 360° interlock groove on fitting locks ferrule into place for the ultimate in holding power.
      • Shank and ferrule lengths are matched for performance and avoid potential hose tube or hose cover damage.
      • Serrations designed to grip, seal, and protect hose when crimped. Note: Traditional "two bump" designs are for banding, not crimping. NAHAD and Campbell do not recommend crimping on "two bump" shanks.
      • Crimped assemblies are low profile and eliminate sharp edges from clamp buckles.
      • Couplings and Instalock Cam & Groove Couplings to keep your inventory as flexible as possible.
      • Designed to couple and interchanging made to ASTM F1122, CID A-A-59326, MIL-C-27487


    NAME
    PART#
    Hose Size
    Material
    Size
    LIST PRICE
    Part C
    C-316-100C
    1"
    316 Stainless Steel
    1"
    $49.35
    Part C
    C-316-150C
    1-1/2"
    316 Stainless Steel
    1-1/2"
    $91.61
    Part C
    C-316-200C
    2"
    316 Stainless Steel
    2"
    $128.33
    Part C
    C-316-300C
    3"
    316 Stainless Steel
    3"
    $230.59
    Part C
    C-AL-150C
    1"
    Aluminum
    1"
    $32.78
    Part C
    C-AL-200C
    2"
    Aluminum
    2"
    $38.06
    Part C
    C-AL-250C
    2-1/2"
    Aluminum
    2-1/2"
    $49.75
    Part C
    C-AL-300C
    3"
    Aluminum
    3"
    $66.16
    Part C
    C-AL-400C
    4"
    Aluminum
    4"
    $90.17
    Part C
    C-AL-600C
    6"
    Aluminum
    6"
    $260.44
    Part C
    C-BR-150C
    1-1/2"
    Brass
    1-1/2"
    $110.59
    Part C
    C-BR-200CM
    2"
    Brass
    2"
    $143.15
    Part C
    C-BR-300C
    3"
    Brass
    3"
    $225.56
    Part C
    C-S-100C
    1"
    Plated Steel
    1"
    $53.11
    Part C
    C-S-150C
    1-1/2"
    Plated Steel
    1-1/2"
    $71.80
    Part C
    C-S-200C
    2"
    Plated Steel
    2"
    $85.32
    Part C
    C-S-300C
    3"
    Plated Steel
    3"
    $140.28
    Part C
    C-S-400C
    4"
    Plated Steel
    4"
    $217.55
