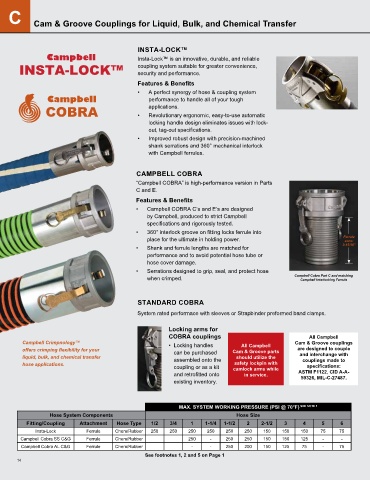

C Cam & Groove Couplings for Liquid, Bulk, and Chemical Transfer

INSTA-LOCK™
Campbell Insta-Lock™ is an innovative, durable, and reliable
INSTA-LOCK™ coupling system suitable for greater convenience,
security and performance.
Features & Benefits
• A perfect synergy of hose & coupling system
Campbell performance to handle all of your tough
COBRA • applications.
by
Revolutionary ergonomic, easy-to-use automatic
locking handle design eliminates issues with lock-
out, tag-out specifications.
• Improved robust design with precision-machined
shank serrations and 360° mechanical interlock
with Campbell ferrules.

CAMPBELL COBRA
“Campbell COBRA” is high-performance version in Parts
C and E.
Features & Benefits
• Campbell COBRA C’s and E’s are designed
by Campbell, produced to strict Campbell
specifications and rigorously tested.
• 360° interlock groove on fitting locks ferrule into
place for the ultimate in holding power. Ferrule
zone:
• Shank and ferrule lengths are matched for 3-15/16”
performance and to avoid potential hose tube or
hose cover damage.
• Serrations designed to grip, seal, and protect hose
when crimped. Campbell Cobra Part C and matching
Campbell Interlocking Ferrule

STANDARD COBRA

System rated performace with sleeves or Strapbinder preformed band clamps.

Locking arms for
COBRA couplings All Campbell
Campbell Crimpnology™ • Locking handles All Campbell Cam & Groove couplings
offers crimping flexibility for your can be purchased Cam & Groove parts are designed to couple
liquid, bulk, and chemical transfer assembled onto the should utilize the and interchange with
couplings made to
hose applications. safety lockpin with specifications:
coupling or as a kit camlock arms while
and retrofitted onto in service. ASTM F1122, CID A-A-
59326, MIL-C-27487.
existing inventory.

MAX. SYSTEM WORKING PRESSURE (PSI @ 70°F) SEE NOTE 1
Hose System Components Hose Size
Fitting/Coupling Attachment Hose Type 1/2 3/4 1 1-1/4 1-1/2 2 2-1/2 3 4 5 6
Insta-Lock Ferrule Chem/Rubber 250 250 250 250 250 250 150 150 150 75 75
Campbell Cobra SS C&G Ferrule Chem/Rubber 250 - 250 250 150 150 125 - -
Campbell Cobra AL C&G Ferrule Chem/Rubber - - 250 200 150 125 75 - 75
See footnotes 1, 2 and 5 on Page 1
