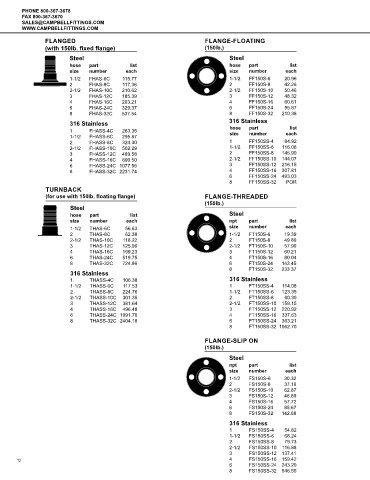

Page 14 - Campbell Fittings

PHONE 800-367-3678
FAX 800-367-3670
SALES@CAMPBELLFITTINGS.COM
WWW.CAMPBELLFITTINGS.COM

FLANGED FLANGE-FLOATING
(with 150lb. fixed flange) (150lb.)
Steel Steel
hose part list hose part list
size number each size number each
1-1/2 FHAS-6C 115.77 1-1/2 FF150S-6 20.96
2 FHAS-8C 117.36 2 FF150S-8 42.26
2-1/2 FHAS-10C 210.62 2-1/2 FF150S-10 50.46
3 FHAS-12C 185.39 3 FF150S-12 48.32
4 FHAS-16C 203.21 4 FF150S-16 60.61
6 FHAS-24C 329.37 6 FF150S-24 95.87
8 FHAS-32C 537.54 8 FF150S-32 210.38
316 Stainless 316 Stainless
list
1 FHASS-4C 263.35 hose part each
size
number
1-1/2 FHASS-6C 295.87
2 FHASS-8C 324.30 1 FF150SS-4 84.92
2-1/2 FHASS-10C 502.29 1-1/2 FF150SS-6 116.06
3 FHASS-12C 489.58 2 FF150SS-8 145.90
4 FHASS-16C 690.50 2-1/2 FF150SS-10 144.07
6 FHASS-24C 1077.56 3 FF150SS-12 216.15
8 FHASS-32C 2231.74 4 FF150SS-16 307.81
6 FF150SS-24 493.03
8 FF150SS-32 POR
TURNBACK
(for use with 150lb. floating flange) FLANGE-THREADED
(150lb.)
Steel
hose part list Steel
size number each npt part list
1-1/2 THAS-6C 56.63 size number each
2 THAS-8C 62.38 1-1/2 FT150S-6 19.39
2-1/2 THAS-10C 118.22 2 FT150S-8 49.89
3 THAS-12C 125.96 2-1/2 FT150S-10 57.90
4 THAS-16C 199.23 3 FT150S-12 60.21
6 THAS-24C 519.75 4 FT150S-16 80.04
8 THAS-32C 724.86 6 FT150S-24 143.45
8 FT150S-32 233.37
316 Stainless
1 THASS-4C 106.38 316 Stainless
1-1/2 THASS-6C 117.53 1 FT150SS-4 114.08
2 THASS-8C 224.76 1-1/2 FT150SS-6 123.35
2-1/2 THASS-10C 301.35 2 FT150SS-8 60.30
3 THASS-12C 381.64 2-1/2 FT150SS-10 159.15
4 THASS-16C 496.48 3 FT150SS-12 220.92
6 THASS-24C 1091.70 4 FT150SS-16 337.63
8 THASS-32C 2404.18 6 FT150SS-24 363.21
8 FT150SS-32 1062.70
FLANGE-SLIP ON
(150lb.)
Steel
npt part list
size number each
1-1/2 FS150S-6 30.32
2 FS150S-8 37.16
2-1/2 FS150S-10 62.87
3 FS150S-12 46.89
4 FS150S-16 57.72
6 FS150S-24 85.67
8 FS150S-32 142.68
316 Stainless
1 FS150SS-4 54.82
1-1/2 FS150SS-6 68.24
2 FS150SS-8 79.73
2-1/2 FS150SS-10 116.88
3 FS150SS-12 137.41
12 4 FS150SS-16 159.42
6 FS150SS-24 243.20
8 FS150SS-32 546.55
