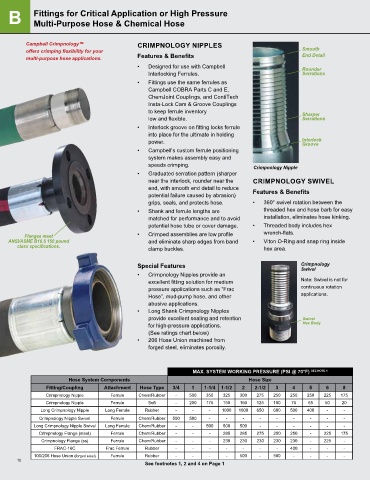

B Fittings for Critical Application or High Pressure
Multi-Purpose Hose & Chemical Hose
Campbell Crimpnology™ CRIMPNOLOGY NIPPLES
offers crimping flexibility for your Smooth
multi-purpose hose applications. Features & Benefits End Detail
• Designed for use with Campbell Rounder
Interlocking Ferrules. Serrations
• Fittings use the same ferrules as
Campbell COBRA Parts C and E,
ChemJoint Couplings, and ContiTech
Insta-Lock Cam & Groove Couplings
to keep ferrule inventory Sharper
low and flexible. Serrations
• Interlock groove on fitting locks ferrule
into place for the ultimate in holding
power. Interlock
Groove
• Campbell’s custom ferrule positioning
system makes assembly easy and
speeds crimping. Crimpnology Nipple
• Graduated serration pattern (sharper
near the interlock, rounder near the CRIMPNOLOGY SWIVEL
end, with smooth end detail to reduce
potential failure caused by abrasion) Features & Benefits
grips, seals, and protects hose. • 360° swivel rotation between the
• Shank and ferrule lengths are threaded hex and hose barb for easy
matched for performance and to avoid installation, eliminates hose kinking.
potential hose tube or cover damage. • Threaded body includes hex
Flanges meet • Crimped assemblies are low profile wrench-flats.
ANSI/ASME B16.5 150 pound and eliminate sharp edges from band • Viton O-Ring and snap ring inside
class specifications. clamp buckles. hex area.
Special Features Crimpnology
Swivel
• Crimpnology Nipples provide an
excellent fitting solution for medium Note: Swivel is not for
pressure applications such as “Frac continuous rotation
Hose”, mud-pump hose, and other applications.
abusive applications.
• Long Shank Crimpnology Nipples
provide excellent sealing and retention Swivel
for high-pressure applications. Hex Body
(See ratings chart below)
• 206 Hose Union machined from
forged steel, eliminates porosity.
MAX. SYSTEM WORKING PRESSURE (PSI @ 70°F) SEE NOTE 1
Hose System Components Hose Size
Fitting/Coupling Attachment Hose Type 3/4 1 1-1/4 1-1/2 2 2-1/2 3 4 5 6 8
Crimpnology Nipple Ferrule Chem/Rubber - 500 350 325 300 275 250 250 250 225 175
Crimpnology Nipple Ferrule Soft - 200 175 150 150 125 100 75 65 50 20
Long Crimpnology Nipple Long Ferrule Rubber - - - 1000 1000 650 600 500 400 - -
Crimpnology Nipple Swivel Ferrule Chem/Rubber 500 500 - - - - - - - - -
Long Crimpnology Nipple Swivel Long Ferrule Chem/Rubber - - 500 500 500 - - - - - -
Crimpnology Flange (steel) Ferrule Chem/Rubber - - - 285 285 275 250 250 - 225 175
Crimpnology Flange (ss) Ferrule Chem/Rubber - - - 230 230 230 230 230 - 225 -
FRAC-16C Frac Ferrule Rubber - - - - - - - 400 - - -
100/206 Hose Union (forged steel) Ferrule Rubber - - - - 500 - 500 - - - -
10
See footnotes 1, 2 and 4 on Page 1
