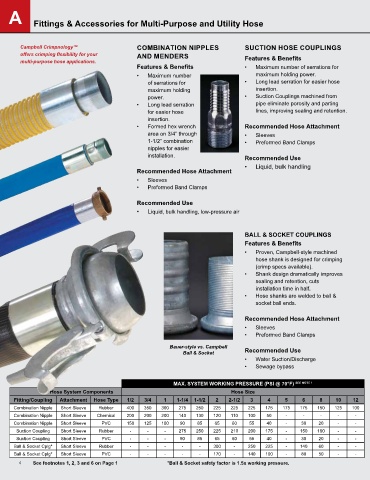

A Fittings & Accessories for Multi-Purpose and Utility Hose

Campbell Crimpnology™ COMBINATION NIPPLES SUCTION HOSE COUPLINGS
offers crimping flexibility for your AND MENDERS
multi-purpose hose applications. Features & Benefits
Features & Benefits • Maximum number of serrations for
• Maximum number maximum holding power.
of serrations for • Long lead serration for easier hose
maximum holding insertion.
power. • Suction Couplings machined from
• Long lead serration pipe eliminate porosity and parting
for easier hose lines, improving sealing and retention.
insertion.
• Formed hex wrench Recommended Hose Attachment
area on 3/4” through • Sleeves
1-1/2” combination • Preformed Band Clamps
nipples for easier
installation. Recommended Use

• Liquid, bulk handling
Recommended Hose Attachment
• Sleeves
• Preformed Band Clamps

Recommended Use
• Liquid, bulk handling, low-pressure air

BALL & SOCKET COUPLINGS
Features & Benefits
• Proven, Campbell-style machined
hose shank is designed for crimping
(crimp specs available).
• Shank design dramatically improves
sealing and retention, cuts
installation time in half.
• Hose shanks are welded to ball &
socket ball ends.

Recommended Hose Attachment
• Sleeves
• Preformed Band Clamps

Bauer-style vs. Campbell
Ball & Socket Recommended Use
• Water Suction/Discharge
• Sewage bypass

MAX. SYSTEM WORKING PRESSURE (PSI @ 70°F) SEE NOTE 1
Hose System Components Hose Size
Fitting/Coupling Attachment Hose Type 1/2 3/4 1 1-1/4 1-1/2 2 2-1/2 3 4 5 6 8 10 12
Combination Nipple Short Sleeve Rubber 400 350 300 275 250 225 225 225 175 175 175 150 125 100
Combination Nipple Short Sleeve Chemical 200 200 200 140 130 120 110 100 50 - - - - -
Combination Nipple Short Sleeve PVC 150 125 100 90 85 65 60 55 40 - 30 20 - -
Suction Coupling Short Sleeve Rubber - - - 275 250 225 210 200 175 - 150 100 - -
Suction Coupling Short Sleeve PVC - - - 90 85 65 60 55 40 - 30 20 - -
Ball & Socket Cplg* Short Sleeve Rubber - - - - - 300 - 250 225 - 140 60 - -
Ball & Socket Cplg* Short Sleeve PVC - - - - - 170 - 140 100 - 80 50 - -
4 See footnotes 1, 2, 3 and 6 on Page 1 *Ball & Socket safety factor is 1.5x working pressure.
