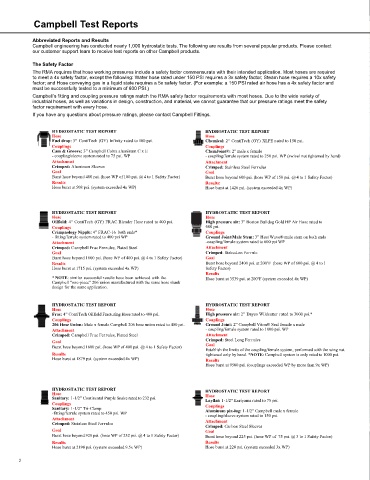

Campbell Test Reports

Abbreviated Reports and Results
Campbell engineering has conducted nearly 1,000 hydrostatic tests. The following are results from several popular products. Please contact
our customer support team to receive test reports on other Campbell products.
The Safety Factor
The RMA requires that hose working pressures include a safety factor commensurate with their intended application. Most hoses are required
to meet a 4x safety factor, except the following: Water hose rated under 150 PSI requires a 3x safety factor; Steam hose requires a 10x safety
factor; and Hose conveying gas in a liquid state requires a 5x safety factor. (For example: a 150 PSI rated air hose has a 4x safety factor and
must be successfully tested to a minimum of 600 PSI.)
Campbell’s fitting and coupling pressure ratings match the RMA safety factor requirements with most hoses. Due to the wide variety of
industrial hoses, as well as variations in design, construction, and material, we cannot guarantee that our pressure ratings meet the safety
factor requirement with every hose.
If you have any questions about pressure ratings, please contact Campbell Fittings.

HYDROSTATIC TEST REPORT HYDROSTATIC TEST REPORT
Hose Hose
Fuel drop: 3" ContiTech (GY) Infinity rated to 100 psi. Chemical: 2" ContiTech (GY) XLPE r ated to 150 psi.
Couplings Couplings
Cam & Groove: 3” Campbell Cobra aluminum C x E ChemJoint®: 2” male x female
- coupling/sleeve system rated to 75 psi. WP - coupling/ferrule system rated to 250 psi. WP (swivel nut tightened by hand)
Attachment Attachment
Crimped: Aluminum Sleeves Crimped: Stainless Steel Ferrules
Goal Goal
Burst hose beyond 400 psi. (hose WP of 100 psi. @ 4 to 1 Safety Factor) Burst hose beyond 600 psi. (hose WP of 150 psi. @ 4 to 1 Safety Factor)
Results Results:
Hose burst at 508 psi. (system exceeded 4x WP) Hose burst at 1426 psi. (system exceeded 4x WP)

HYDROSTATIC TEST REPORT HYDROSTATIC TEST REPORT
Hose Hose
Oilfield: 4" ContiTech (GY) FRAC Blender Hose rated to 400 psi. High pressure air: 3” Boston Bulldog Gold HP Air Hose rated to
Couplings 600 psi.
Crimpnology Nipple: 4” FRAC-16 both ends* Couplings
- fitting/ferrule system rated to 400 psi WP Ground Joint/Male Stem: 3” Heat Wave® male stem on both ends
Attachment -coupling/ferrule system rated to 600 psi WP
Crimped: Campbell Fr ac Ferrules, Plated Steel Attachment
Goal Crimped: Staked-on Ferrule
Burst hose beyond 1600 psi. (hose WP of 400 psi. @ 4 to 1 Safety Factor) Goal
Results Burst hose beyond 2400 psi. at 200°F (hose WP of 600 psi. @ 4 to 1
Hose burst at 1715 psi. (system exceeded 4x WP) Safety Factor)
Results
* NOTE: similar successful results have been achieved with the Hose burst at 3539 psi. at 200°F (system exceeded 4x WP)
Campbell “one-piece” 206 union manufactured with the same hose shank
design for the same application.

HYDROSTATIC TEST REPORT HYDROSTATIC TEST REPORT
Hose Hose
Frac: 4” ContiTech Oilfield Fracturing Hose rated to 400 psi. High pressure air: 2" Dayco Wildcatter rated to 3000 psi.*
Couplings Couplings
206 Hose Union: Male x female Campbell 206 hose union rated to 400 psi. Ground Joint: 2” Campbell Viton® Seal female x male
Attachment - coupling/ferrule system rated to 1000 psi. WP
Crimped: Campbell Fr ac Ferrules, Plated Steel Attachment
Goal Crimped: Steel Long Ferrules
Burst hose beyond 1600 psi. (hose WP of 400 psi. @ 4 to 1 Safety Factor) Goal

Establish the limits of the coupling/ferrule system, performed with the wing nut
Results tightened only by hand. *NOTE: Campbell system is only rated to 1000 psi.
Hose burst at 1879 psi. (system exceeded 4x WP) Results
Hose burst at 9500 psi. (couplings exceeded WP by more than 9x WP)

HYDROSTATIC TEST REPORT HYDROSTATIC TEST REPORT
Hose Hose
Sanitary: 1-1/2” Continental Purple Snake rated to 232 psi. Layflat: 1-1/2" Kuriyama rated to 75 psi.
Couplings Couplings
Sanitary: 1-1/2” Tri-Clamp Aluminum pin-lug: 1-1/2” Campbell male x female
-fitting/ferrule system rated to 450 psi. WP - coupling/sleeve system rated to 150 psi.
Attachment Attachment
Crimped: Stainless Steel Ferrules Crimped: Carbon Steel Sleeves
Goal Goal
Burst hose beyond 928 psi. (hose WP of 232 psi. @ 4 to 1 Safety Factor) Burst hose beyond 225 psi. (hose WP of 75 psi. @ 3 to 1 Safety Factor)

Results Results
Hose burst at 2198 psi. (system exceeded 9.5x WP) Hose burst at 228 psi. (system exceeded 3x WP)
